Cryo-EM Grid
Au–Amorphous Nickel Titanium alloy film
Newly developed, innovative product: ANTCryo™ highly supports Single-Particle Nickel Titanium alloy grids. Product Patent authorized: CN202010425127.5. It is a main solution for the next generation of cryo-EM single-particle analysis and structural biology.
Our customers using ANTCryo™ Grids have published 28 papers on high-profile journals in last 3 years. ANTCryo™ has extraordinary benefits and is widely recognized by cryo-EM community.
Advantages
Increase Resolution
Compared with carbon grids, ANTCryo™ grids have much better conductivity, resulting in the lower electron charging effect and main beam-induced motion (BIM) during cryoEM imaging, thus higher resolution structure can be then achieved. User experiments show that more than 0.2 Å improvement on the resolution.

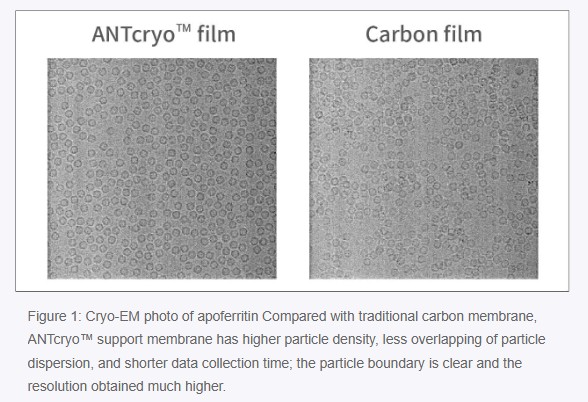

In terms of the adsorption force of the particles, the ANTCryo™ support film is nearly 10 times lower than the traditional carbon film. This improves the particle inlet rate, reduces the aggregation of particles in the pore and significantly improves the success rate of sample preparation.

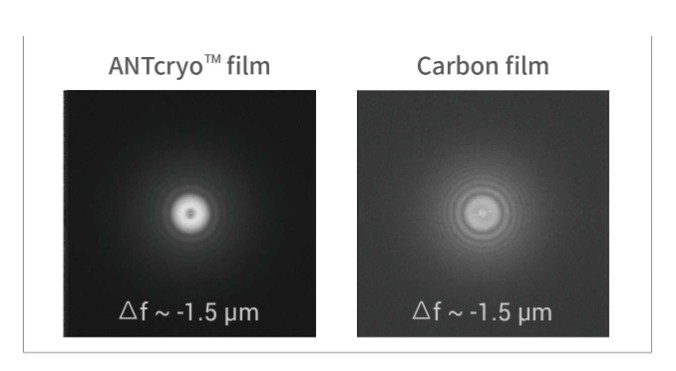

With the control of higher particle density, users need much less Dst time for data collection for the analysis of structural information. At the same defocus condition for the analysis process and initial data suitable for cryoEM, ANTCryo™ grids can be more efficiently used in the same time. In general, you will see similar or better performance with ANTCryo™ grids.
ANTcryo™ Series Products
Cryo-SPA provides 4 standard models for stable supply, please contact us for custom models.
| Standard Model | Grid Material | Grid Mesh Count | Pore Diameter | Pore Edge Spacing |
|---|---|---|---|---|
| M01-Au300-1.2/1.3 | Au | 300 | 1.2 µm | 1.3 µm |
| M02-Cu300-1.2/1.3 | Cu | 300 | 1.2 µm | 1.3 µm |
| M03-Au400-1.2/1.3 | Au | 400 | 1.2 µm | 1.3 µm |
| M04-Au300-2.0/1.0 | Au | 300 | 2.0 µm | 1.0 µm |
• Other different grid mesh counts and array hole specifications, please contact for customization.
• Support film thickness 25 ± 3 nm.
• Packaging specifications: 50 pieces/box.
